YAMAHA
YFM660F Grizzly-All 2002-2008,
YXR660 Rhino 2004-2007,

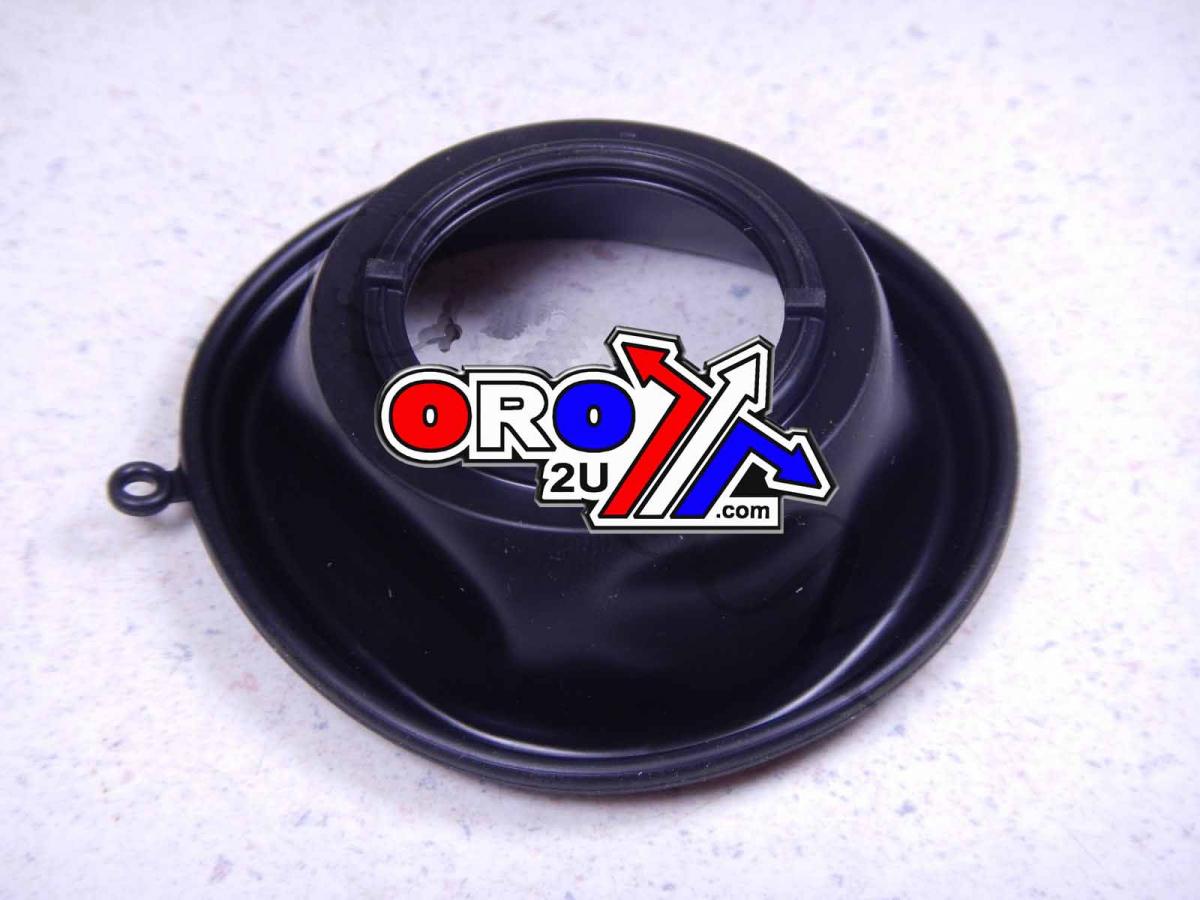

CARBURETOR SLIDE DIAPHRAGM K&L Supply 18-8869
(top diaphragm rubber only, no slide body)
- Made in Japan.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- K&L Supply products are a high quality replacement part and carries our guarantee of your satisfaction.
Part No. 27-2864
Cross reference numbers ONLY.
5KM-24411-00-00,
Assemblies where 5KM-24411-00-00 is used
2002 GRIZZLY 660 (YFM660FP) - Carburetor
2002 GRIZZLY 660 METALLIC SILVER (YFM660FPS) - Carburetor
2002 GRIZZLY HUNTER EDITION (YFM660FHP) - Carburetor
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER (YFM660FHRH) - Carburetor
2003 GRIZZLY 660 (YFM660FR) - Carburetor
2003 GRIZZLY 660 4X4 METALLIC TITANIUM (YFM660FRGY) - Carburetor
2003 GRIZZLY 660 WETLANDS HUNTER EDITION (YFM660FHR) - Carburetor
2004 GRIZZLY 660 (YFM660FS) - Carburetor
2004 GRIZZLY 660 AUTO 4X4 WETLAND (YFM660FHSW) - Carburetor
2004 GRIZZLY 660 AUTO 4X4 WETLAND (YFM660FLES) - Carburetor
2004 GRIZZLY 660 HARDWOODS HUNTER CAMO (YFM660FHS) - Carburetor
2004 RHINO 660 (YXR660FAS) - Carburetor
2004 RHINO HARDWOODS CAMO (YXR660FAHS) - Carburetor
2005 GRIZZLY 660 (YFM66FAT) - Carburetor
2005 GRIZZLY 660 HUNTER (YFM66FAHT) - Carburetor
2005 GRIZZLY 660 HUNTER WETLAND (YFM66FAHWT) - Carburetor
2005 GRIZZLY 660 SE (YFM66FASET) - Carburetor
2005 RHINO (YXR660FAT) - Carburetor
2005 RHINO HUNTER (YXR660FAHT) - Carburetor
2006 GRIZZLY 660 DUCKS UNLIMITED EDITION (YFM66FAHDV) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FABGG) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FABGH) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS (YFM66FAV) - Carburetor
2006 GRIZZLY 660 HUNTER HARDWOODS HD CAMO (YFM66FAHV) - Carburetor
2006 GRIZZLY 660 SPECIAL EDITION (YFM66FASEV) - Carburetor
2006 RHINO 660 4WD (YXR66FAVGR) - Carburetor
2006 RHINO 660 4WD EXPLORING EDITION - Hunter Green (YXR66FAEXG) - Carburetor
2006 RHINO 660 4WD EXPLORING EDITION Hardwoods HD Camo (YXR66FAEXH) - Carburetor
2006 RHINO 660 4WD HUNTER (YXR66FAHV) - Carburetor
2006 RHINO 660 4WD SPECIAL EDITION (YXR66FASEV) - Carburetor
2007 GRIZZLY 660 (YFM66FGW) - Carburetor
2007 GRIZZLY HUNTER (YFM66FGHW) - Carburetor
2007 RHINO 660 (YXR66FW) - Carburetor
2007 RHINO 660 4WD EXPLORING EDITION - HUNTER GREEN (YXR66FEXW) - Carburetor
2007 RHINO 660 4WD SPECIAL EDITION (YXR66FSEW) - Carburetor
2007 RHINO 660 4WD SPORT EDITION (YXR66FSPW) - Carburetor
2007 RHINO 660 DUCKS UNLIMITED EDITION (YXR66FDUW) - Carburetor
2007 RHINO 660 HUNTER - HARDWOODS HD CAMO (YXR66FHW) - Carburetor
2008 GRIZZLY 660 (YFM66FGXGR) - Carburetor
2008 GRIZZLY 660 (YFM66FGXL) - Carburetor
2008 GRIZZLY 660 (YFM66FGXR) - Carburetor
2008 GRIZZLY 660 HUNTER (YFM66FGHX) - Carburetor
2002 GRIZZLY 600 METALLIC SILVER - YFM660FPS CARBURETOR
2002 GRIZZLY HUNTER EDITION - YFM660FHP CARBURETOR
2002 YFM660FP CARBURETOR
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER - YFM660FR-H CARBURETOR
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER EDITION - YFM660FHR-HD CARBURETOR
2003 660 GRIZZLY REAL TREE HARDWOOD HUNTER EDITION - YFM660FHRH CARBURETOR
2003 GRIZZLY 660 - YFM660FR CARBURETOR
2003 GRIZZLY 660 4X4 METALLIC TITANIUM - YFM660FRGY CARBURETOR
2003 GRIZZLY 660 4X4 WETLANDS HUNTER EDITION - YFM660FHR CARBURETOR
| Make * | Model * | CC * | Year From | Year To |
|---|---|---|---|---|
| Yamaha | YFM F GRIZZLY | 660 | 2002 | 2008 |
| Yamaha | YXR RHINO | 660 | 2004 | 2007 |
