CONNECTING CONROD ROD REBUILD KIT +5mm. BRONCO AT-09134
YAMAMA
YFZ350 Banshee (Long Rod) 1987-2006,,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

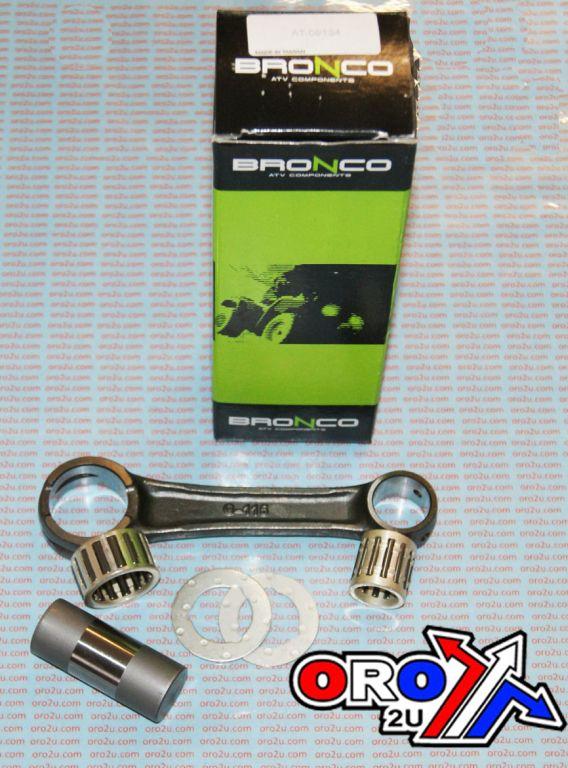

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
|
SIZE
|
MM
|
|
Centre 2 Centre
|
115 |
|
Small End Bearing
|
16x21x22.3
|
|
Small End Bore Ø
|
21
|
|
Small End Width
|
17.90
|
|
Big End Bearing
|
22x29x17
|
|
Big End Bore Ø
|
22
|
|
Big End Width
|
17 |
|
Big End Pin Ø
|
29
|
|
Big End Pin Length
|
52.70
|
|
Washer Thickness
|
22.20x36.90x1.00
|
Cross reference numbers ONLY.
+5mm long rod for use on 4011 & 4111 crankshafts YAMAHA: 29L-11651-00-00, HOTRODS 8158,
