CONNECTING ROD 87-06 YFS200, PSYCHIC AT-97307 YAMAHA IT200 WR200 DT200 43G-11651-00-00

YAMAHA
YFS200 Blaster 1988-2006,

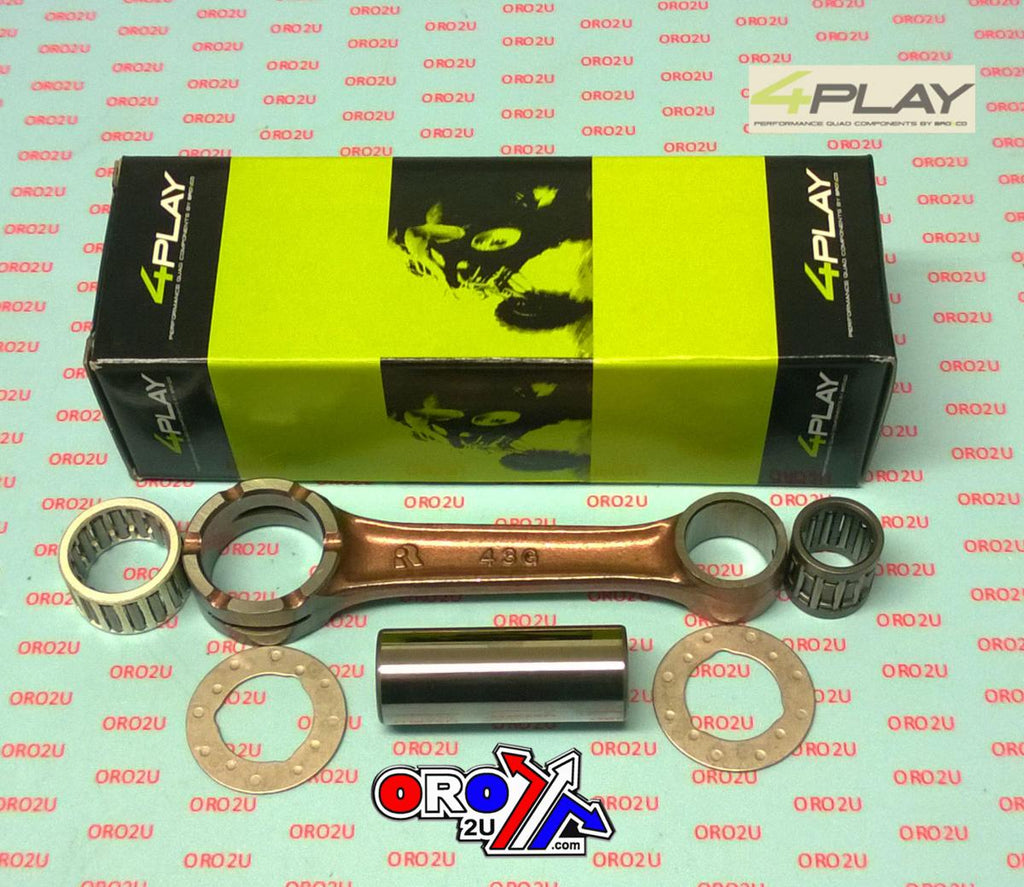

CONNECTING ROD REBUILD KIT BRONCO AT-97307

- High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened.
- Rods are double-forged to improve grain flow and maintain dimensional consistency.
- Rods are also shot-peened and double-honed for superior strength under heavy loads.
- Small ends are drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
- Thrust washers and crank pin bearings are silver-coated for added lubricity.
- Kits sold complete with rod, crank pin, crank pin bearing, top end bearing, needle cage bearing, and thrust washers

Center To Center (mm): 110
Big End Bearing (mm):
Big End Bore (mm): 29
Big End Width (mm):
Big End Pin Diameter (mm): 22
Big End Pin Length (mm): 56.40
Small End Bearing (mm):
Small End Bore (mm): 21
Small End Width (mm):
Washer Thickness (mm): 1.00

Cross reference numbers.
VESRAH VA-2009, WOSSNER P203, WISECO WPR170, PSYCHCIC AT- 97307, HOTROD 8144, 43G-11651-00-00,

Assemblies where 2TV-11651-00-00 is used
1992 WR200RD - Crankshaft Piston
1984 IT200L - Crankshaft - Piston
1985 IT200N - Crankshaft - Piston
1986 IT200S - Crankshaft-Piston
1986 IT200S - Piston-Connector Rod Assembly
1988 BLASTER (YFS200U) - Crankshaft Piston
1989 BLASTER (YFS200W) - Crankshaft Piston
1990 BLASTER (YFS200A) - Crankshaft Piston
1991 BLASTER (YFS200B) - Crankshaft Piston
1991 BLASTER (YFS200B_MN) - Crankshaft Piston
1992 BLASTER (YFS200D) - Crankshaft Piston
1992 BLASTER (YFS200D_MN) - Crankshaft Piston
1993 BLASTER (YFS200E) - Crankshaft Piston
1993 BLASTER (YFS200E_MN) - Crankshaft Piston
1994 BLASTER (YFS200F) - Crankshaft Piston
1994 BLASTER (YFS200F_MN) - Crankshaft Piston
1995 BLASTER (YFS200G) - Crankshaft Piston
1995 BLASTER (YFS200G_MN) - Crankshaft Piston
1996 BLASTER (YFS200H) - Crankshaft Piston
1996 BLASTER (YFS200H_MN) - Crankshaft Piston
1997 BLASTER (YFS200J) - Crankshaft Piston
1997 BLASTER (YFS200J_MN) - Crankshaft Piston
1998 BLASTER (YFS200K) - Crankshaft Piston
1999 BLASTER (YFS200L) - Crankshaft Piston
2000 BLASTER (YFS200M) - Crankshaft Piston
2001 BLASTER (YFS200N) - Crankshaft Piston
2002 BLASTER (YFS200P) - Crankshaft Piston
2003 BLASTER (YFS200R) - Crankshaft Piston
2004 BLASTER (YFS200S) - Crankshaft Piston
2005 BLASTER (YFS200T) - Crankshaft Piston
2006 BLASTER (YFS200V) - Crankshaft Piston
2006 BLASTER SE (YFS200SEV) - Crankshaft Piston
