Connecting Rod 99-08 Trx400Ex, Bronco At-09250 Honda Atv

HONDA ATV
TRX400EX 1999-2008,
TRX400X 2009-2014,

CONNECTING ROD REBUILD KIT BRONCO AT-09250,

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

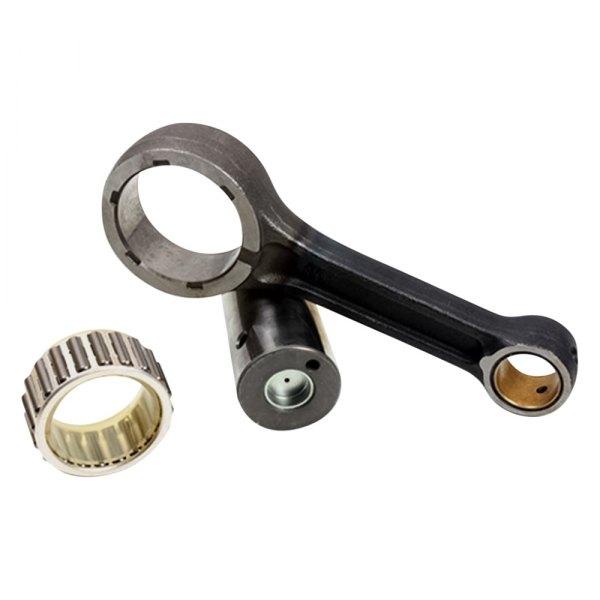

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Center To Center (mm): 122.6
Big End Bearing (mm):   34x43x20
Big End Bore (mm): 43
Big End Width (mm): 21
Big End Pin Diameter (mm): 34
Big End Pin Length (mm): 66
Small End Bearing (mm): None.
Small End Bore (mm): 20
Small End Width (mm): 19
Washer Thickness (mm): None.

Cross reference numbers ONLY.
PROX 03.1499,13000-HN1-000 / 13000-MBV-730,
