POLARIS ATV
BIG BOSS 6X6 1999-02
LUH 6X6 PPS 2002
PTV 4X4/6X6 SERIES 10
SPORTSMAN 500 1996-00
SPORTSMAN 500 DUSE 2001
SPORTSMAN 500 RSE 1999-00
SPORTSMAN 6X6 2000-08
ATV PRO 500 4X4 PPS 2002
BIG BOSS 500 6X6 1998-99
MAGNUM 500 1999-03
SCRAMBLER 500 1997
WORKER 500 1999
XPLORER 500 1997
POLARIS UTV
RANGER 1998-00
RANGER 2X4 2004-08
RANGER 6X6 2002-05
RANGER 2X4 500 CARB 2008-09
RANGER 4X4 500 ALL 2004-13
UTV 4X4 SERIES 10
UTV 2X4/4X4/6X6 SERIES 11

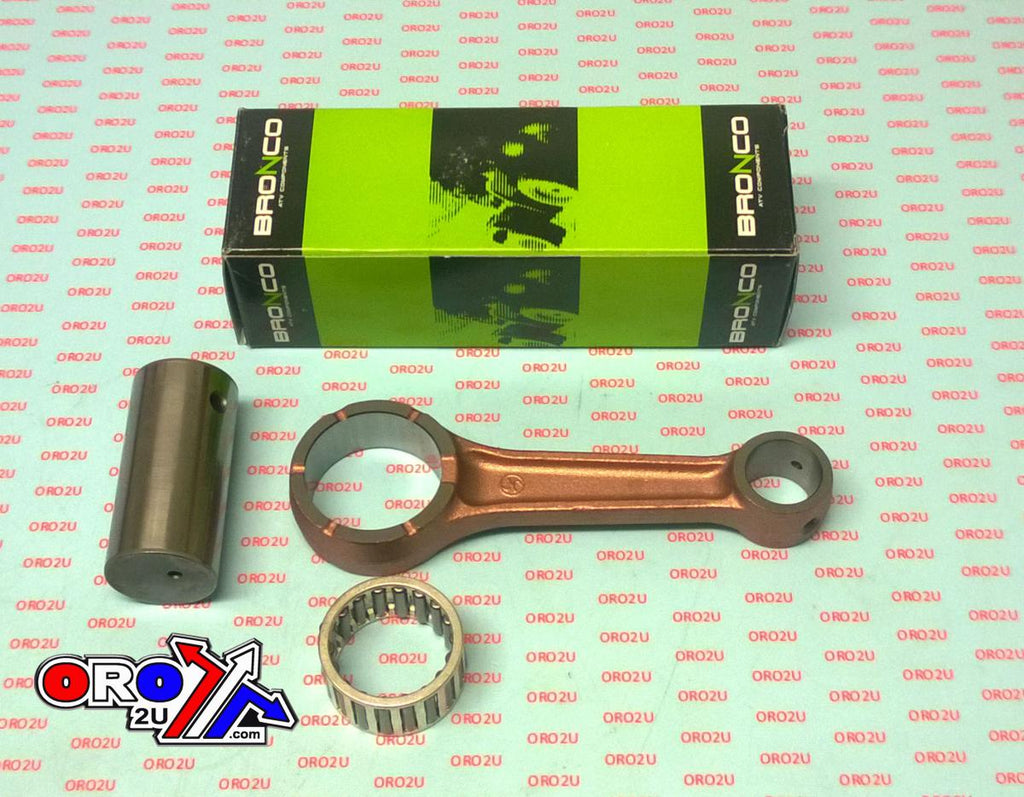

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09168
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 127.50 |
| Small End Bearing | None |
| Small End Bore Ø | 23 |
| Small End Width | 22 |
| Big End Bearing | 34x43x21.7 |
| Big End Bore Ø | 43 |
| Big End Width | 22 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 70.8 |
| Washer Thickness | None |
Cross reference numbers ONLY.
3085376 , 3085341, 3085400 ,3085343
1999-200 P500 MAGNUM
1998-1999 P500 BIG BOSS 6X6
1997 P500 SCRAMBLER
1998-2000 P500 RANCHER
1996-2000 P500 SPORTSMAN
2000 P500 SPORTSMAN 6X6
1997 P500 XPOLRER
