Connecting Rod Kit Trx250, Hot Rods 8691 Honda Atv

The Hot Rods Connecting Rod Kit 8691 is a high-performance replacement kit for Honda TRX 250 series ATVs, designed to provide superior strength and reliability in demanding conditions. Manufactured from hot-rolled ASTM 4115 steel and case-hardened for durability, this kit includes all components needed for a complete connecting rod replacement.

Features:

• Constructed from hot-rolled ASTM 4115 steel, case-hardened to 58-62 RC.
• Advanced caged needle roller bearing design for high-RPM performance.
• Big end features side scalloping and vent slots to reduce bearing race distortion at high RPM.
• Shot-peened for durability and to eliminate surface stress risers.
• Double-honed bearing surfaces ensure ultra-round reliability.
• Double-drilled small ends for improved lubrication and cooling of wrist pin bearings.
• Includes silver-coated bronze phosphor thrust washers for added lubricity.

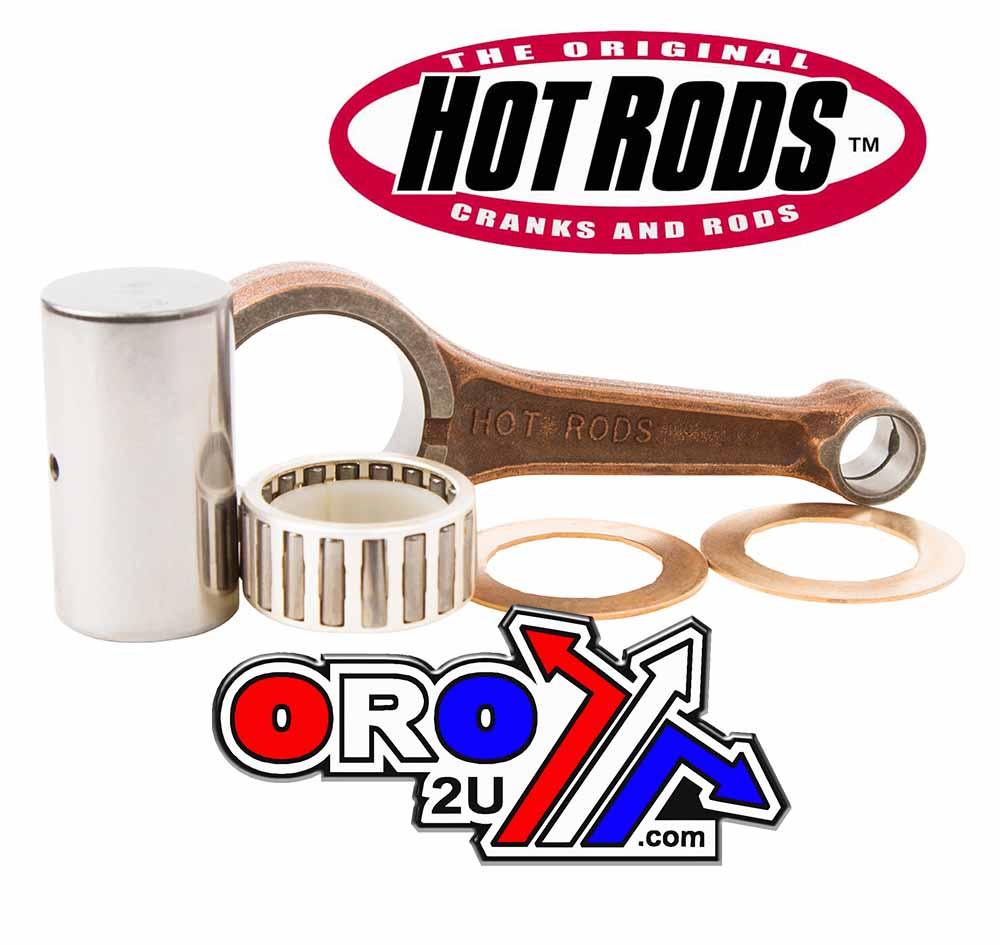

Included Items:

• (1) Connecting rod.
• (1) Crank pin.
• (1) Roller bearing.
• (2) Thrust washers.
• Instructions.

Technical Specifications:

• Big End Bore: 38.00 mm
• Big End Width: N/A
• Center to Center: 105.50 mm
• Pin Diameter: 30.00 mm
• Pin Length: 53.90 mm
• Small End Bore: 15.00 mm
• Small End Width: N/A
• Washer Thickness: 0.95 mm

Compatible Models:

Honda TRX250EX (2001–2008):

• 2001–2008 Honda TRX250EX Sportrax

Honda TRX250TE Recon (2002–2017):

• 2002–2017 Honda TRX250TE Recon ES

Honda TRX250TM Recon (2002–2017):

• 2002–2017 Honda TRX250TM Recon

Honda TRX250X (2009–2017):

• 2009–2017 Honda TRX250X

Part Number: 8691
