CONNECTING CONROD ROD REBUILD KIT BRONCO AT-09135
HONDA
80 Honda ATC185
81-83 ATC185S
81-83 ATC200
84 ATC200ES Big Red
84-85 ATC200M
84-86 ATC200S Big Red
83-85 ATC200X
84 TRX200 FourTrax 200
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

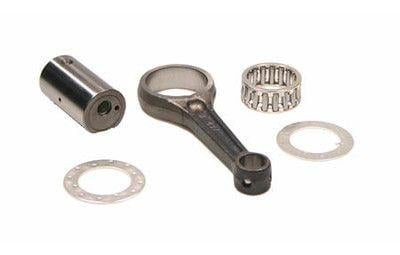

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
Big End Bearing (mm): 30x38x16
Big End Bore (mm): 38.00
Big End Width (mm): 16
Center To Center (mm): 103.5
Pin Diameter (mm): 30.00
Pin Length (mm): 53.80
Small End Bearing (mm): none
Small End Bore (mm): 15.00
Small End Width (mm): 16.00
Washer Thickness (mm): 30.15x46x1.0
Cross reference numbers ONLY.
13202-427-300 , 13202-958-300 , 13381-HF1-670 , 91003-437-004 / 91003-440-003, VA-1012,
