Connecting Rod Trx300 Honda, Bronco At-09453

HONDA
TRX300EX Fourtrax 93-00,
TRX300EX Sportrax 01-08,
TRX300 4WD Fourtrax 88-00,
TRX300FW 4WD Fourtrax 88-95,
HONDA Dirt XR300R 2010,,

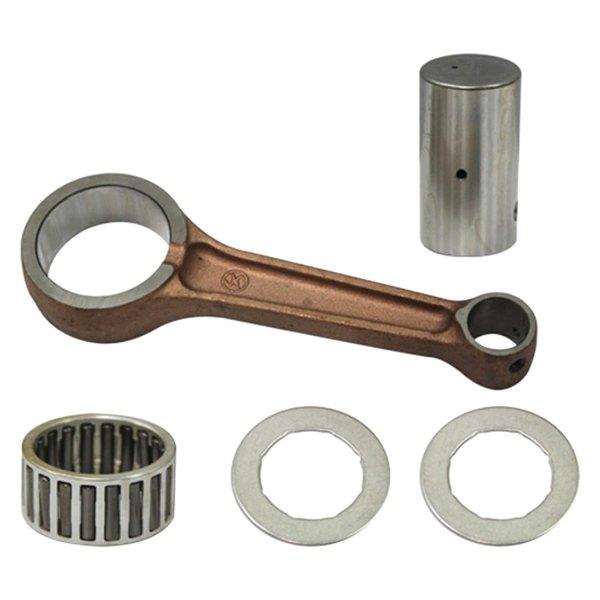

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09453

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

Big End Bearing (mm): 33x41x20
Big End Bore (mm): 41
Big End Width (mm): 20
Center To Center (mm): 123
Pin Diameter (mm): 33.00
Pin Length (mm): 60.00
Small End Bearing (mm): NONE
Small End Bore (mm): 17.00
Small End Width (mm): 20.00

Cross reference numbers ONLY.
VESRAH VA-1010,
