Connecting Rod Trx420/500 At-09409 Honda Atv

ATV (HONDA)
2014-16 TRX420FA1,
2014-17 TRX420FA2,
2015-18 TRX420FA5/FA6,
2007-13 TRX420FE/FM/FPE/FPM/TE,
2014-18 TRX420FE1,
2014-18 TRX420FM1/FM2,
2014-16 TRX420TE1,
2014-18 TRX420TM1,
2012-13 TRX500FE/FM/FPE/FPM,
2014-16 TRX500FE1,
2014-18 TRX500FE2,
2014-18 TRX500FM1/FM2,
2015-18 TRX500FM5/FM6,
2015-17 TRX500FM7,
UTV (HONDA)
2015-17 SXS500 PIONEER,

CONNECTING ROD REBUILD KIT BRONCO AT-09409

SIZE.
TOP EYE DIA. 19mm.
BOTTOM EYE DIA. 44mm.
Center-Center 118mm.
Rod width 20/20mm.
Bottom Pin Dia. 34 X L 63.55.
Big End Bearing 34x52.8x0.9

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

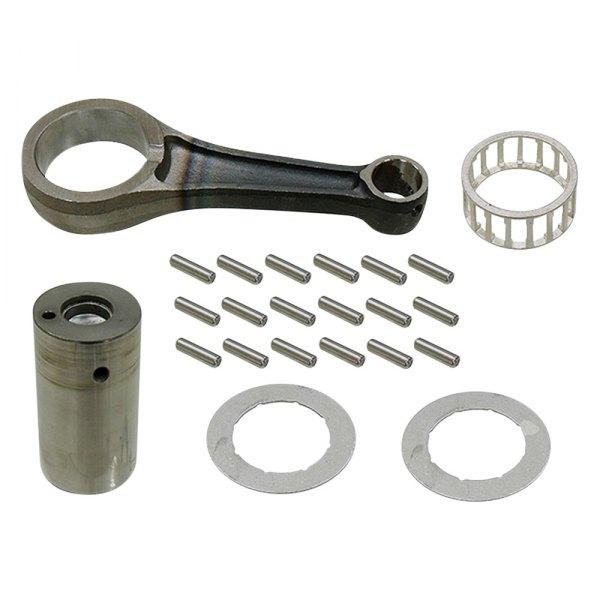

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SCM415,

Cross reference numbers ONLY.
13000-HR0-F00, 13000-HR3-A40, 13000-HR3-A60,

HONDA ATV
TRX420FA1 2014-16
TRX420FA2 2014-18
TRX420FA5/FA6 2015-18
TRX420FE/FM/FPE/FPM/TE 2007-13 TRX420FE1   2014-18 TRX420FM1/FM2 2014-18
TRX420TE1 2014-16
TRX420TM1 2014-18
TRX500FE/FM/FPE/FPM 2012-13
TRX500FE1 2014-16
TRX500FE2 2014-18
TRX500FM1/FM2 2014-18
TRX500FM5/FM6 2015-18
TRX500FM7 2015-17
UTV
SXS500 PIONEER 2015-18
