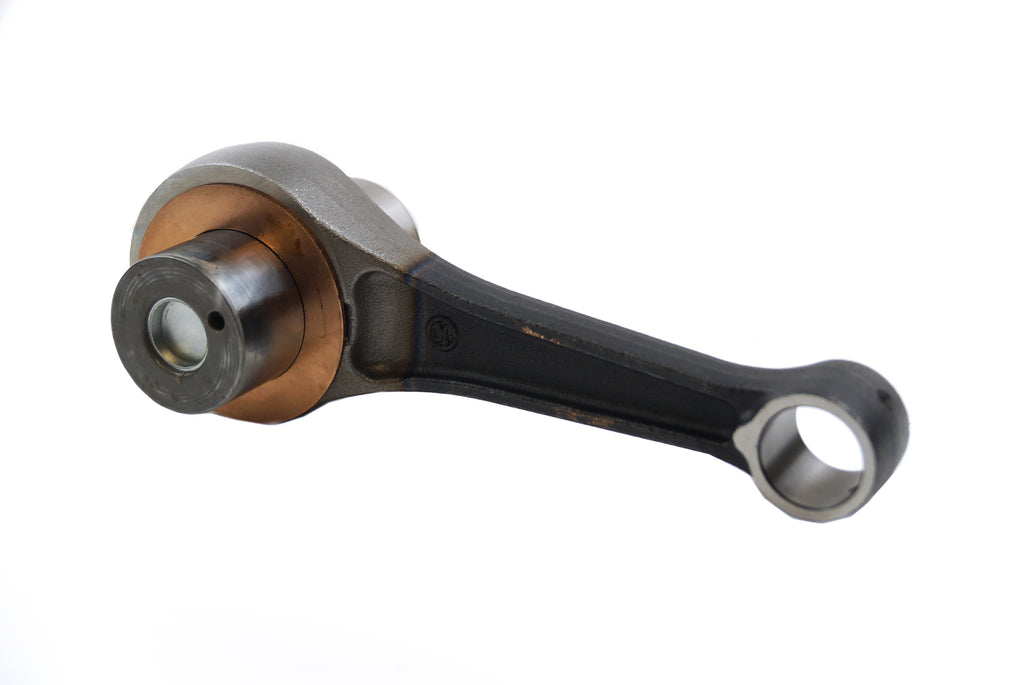

CONNECTING CONROD ROD REBUILD KIT BRONCO AT-09410
HONDA
2001-2014 TRX500FA,
2004-2008 TRX500FGA,
2009-2014 TRX500FPA,
2001-2008 TRX500FA Rubicon,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 129.5 |
| Small End Bearing | None |
| Small End Bore Ø | 20 |
| Small End Width | 20
|
| Big End Bearing | 34x44x19.8 |
| Big End Bore Ø | 44 |
| Big End Width | 20
|
| Big End Pin Ø | 34 |
| Big End Pin Length | 69
|
| Washer Thickness | 34x53x1.0
|
SIZE. Center to center 129.5mm, Big Bore 43x20mm, Small Bore 20x20mm, Crank Pin 34x69mm, Bottom Bearing KU 34x44x19.8mm, Washers 34x53x1mm
Cross reference numbers ONLY.
VESRAH VA-1019, WOSSNER P4043,
TRX500FA Fourtrax Foreman Rubicon 01-08, TRX500FA Fourtrax Foreman Rubicon 10, TRX500FGA Fourtrax Foreman Rubicon 04, TRX500FGA Fourtrax Foreman Rubicon 06-08, TRX500FPA Fourtrax Foreman Rubicon 09-13,
