Connecting Rod Trx500Fe, Hotrods 8699 Honda Atv

High-quality replacement connecting rod kit designed for Honda TRX500 Foreman models, providing superior strength and reliability. Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 RC for maximum durability. The advanced design incorporates strategically placed side scalloping and vent slots in the big end to minimize bearing race distortion at high RPMs. The rod is shot-peened to eliminate surface stress risers and double-honed to create an ultra-round bearing surface for enhanced reliability. Small ends are double-drilled to improve lubrication and cooling of the wrist pin bearing, critical under high-performance conditions. The kit is sold complete with all necessary components for assembly, including a rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.

Features:

• Constructed from ASTM 4115 material and case-hardened to 58-62 RC.
• Side scalloping and vent slots minimize distortion at high RPM.
• Shot-peened finish eliminates surface stress risers.
• Double-honed for an ultra-round bearing surface and high reliability.
• Double-drilled small ends improve lubrication and cooling for wrist pin bearings.
• Includes all components for a complete rod assembly.

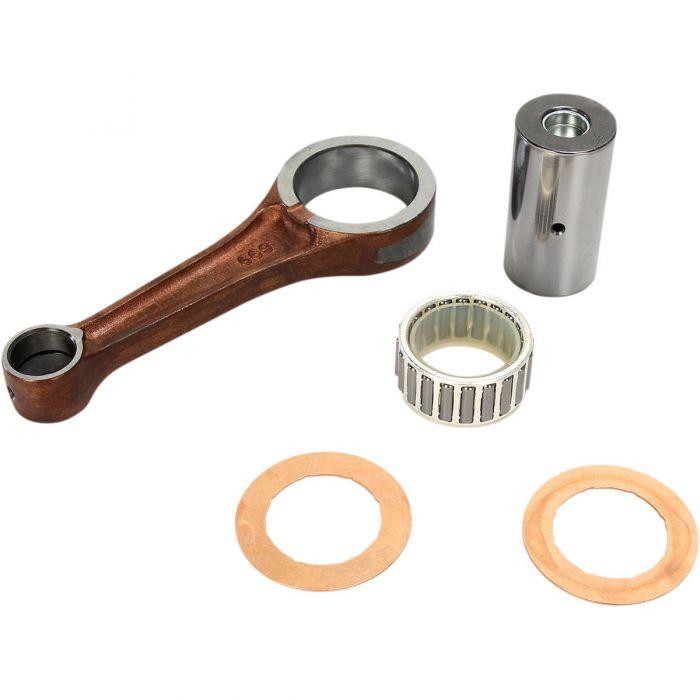

Included Items:

• (1) Connecting rod
• (1) Crank pin
• (1) Roller bearing
• (2) Thrust washers

Vehicle Compatibility:

• 2005-2011 Honda TRX500FE Fourtrax Foreman ES 4x4
• 2005-2008 Honda TRX500FM Fourtrax Foreman 4x4
• 2005-2006 Honda TRX500TM Fourtrax Foreman

Part Number: 56-8971.HR
