Overview

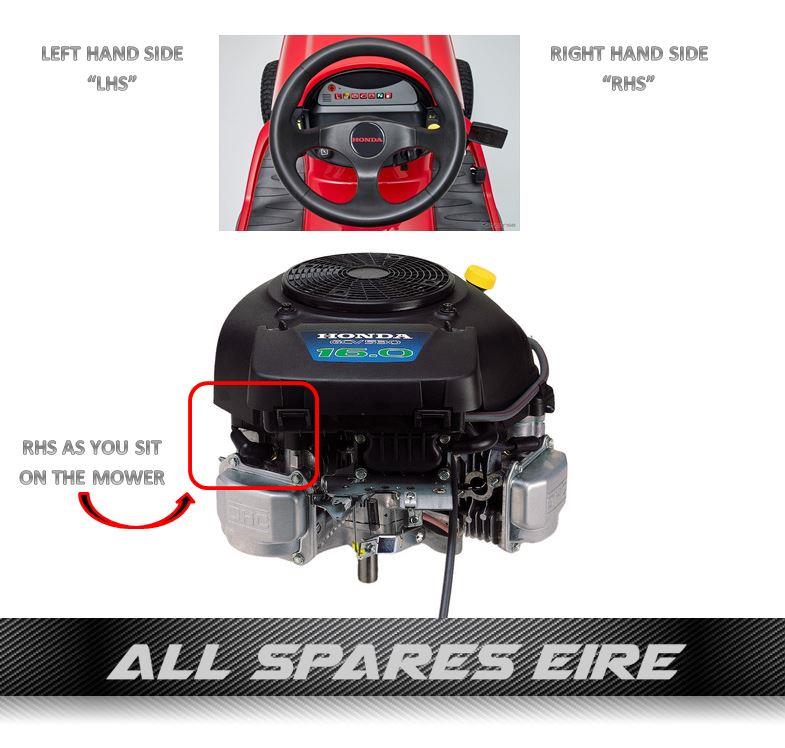

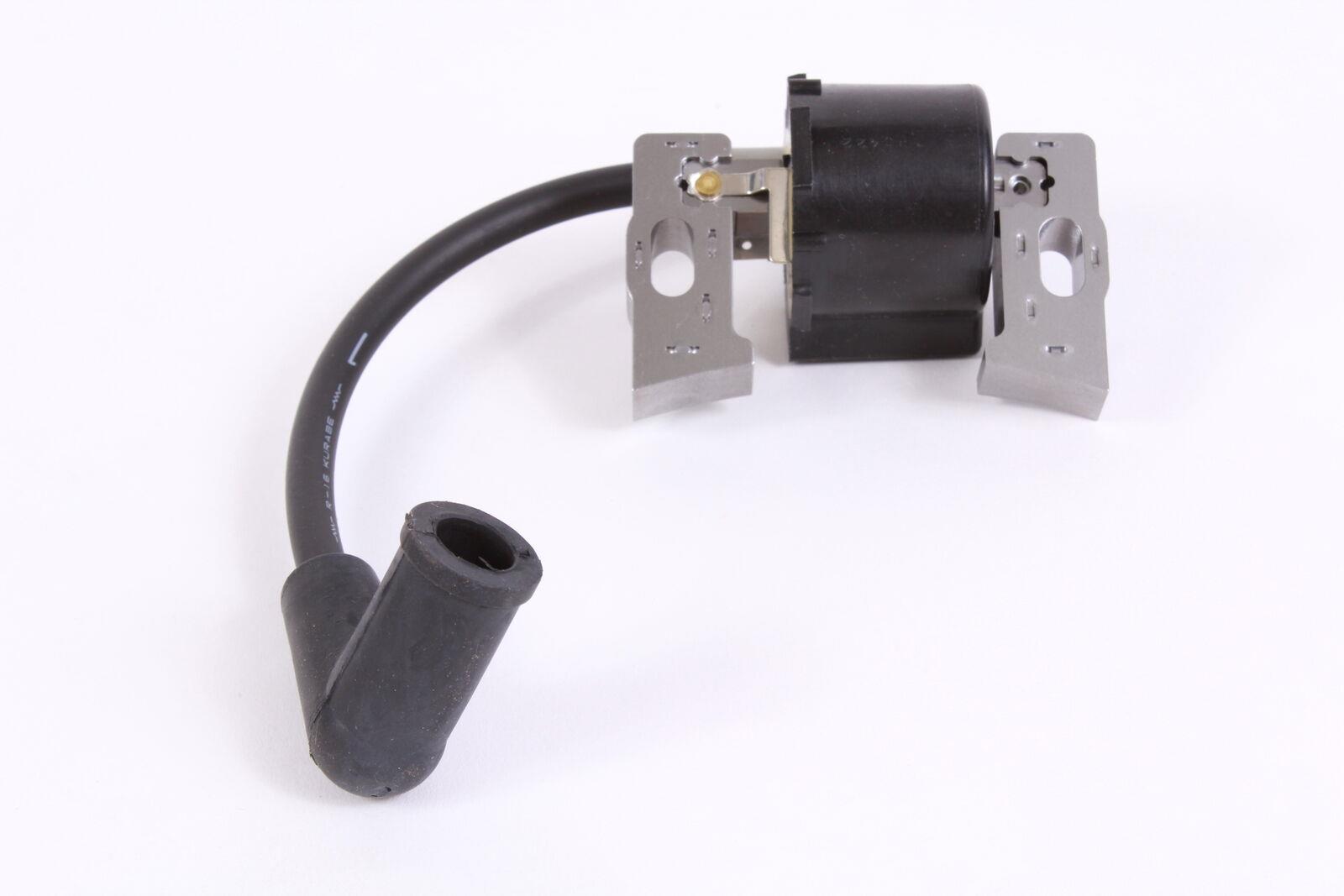

Important: R/H Side COIL ASSY., IGNITION (#1) - SEE PHOTOS
Fits:
GXV530 & GCV530 Honda Engines & Various
Machines using the Above Engines
Also GXV530U (GJAEK), GCV520U (GJABK) & GCV530U (GJADK) Engines
Please note this is the right side coil (left uses P/N 30550-Z0A-033)

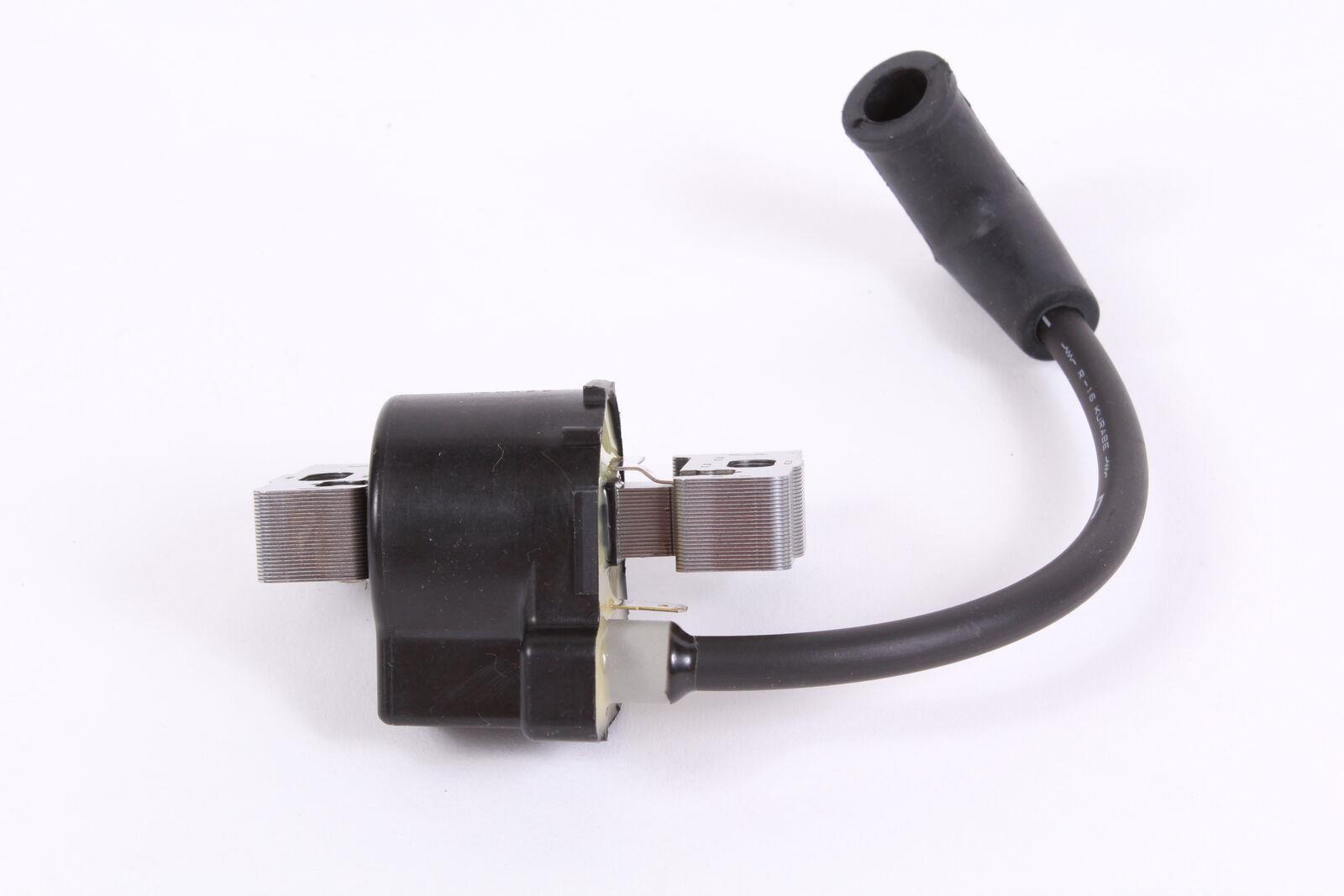

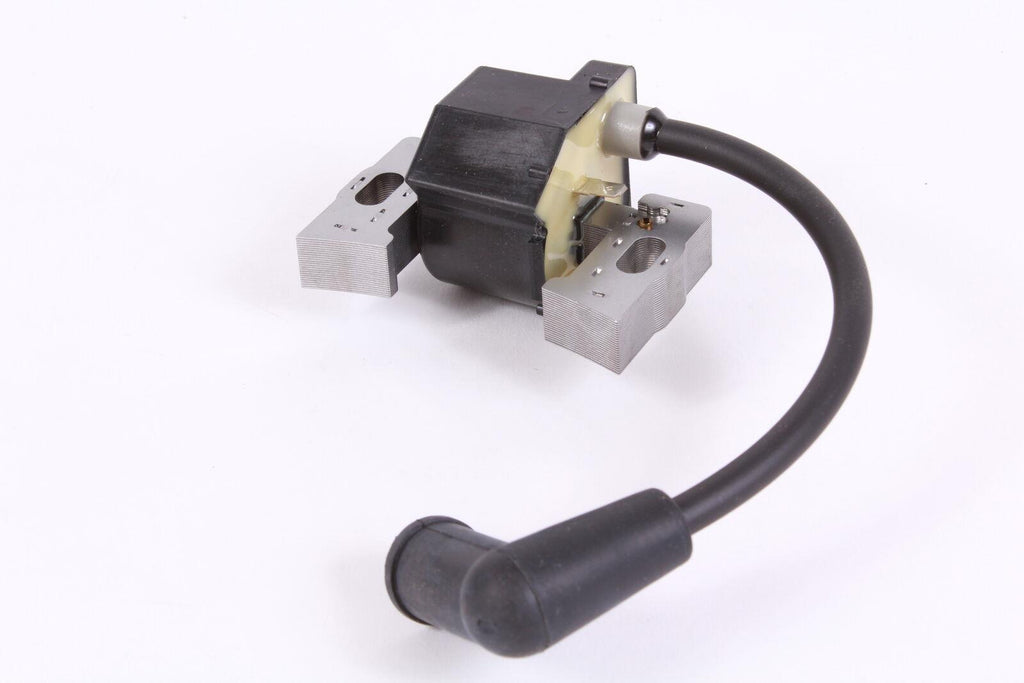

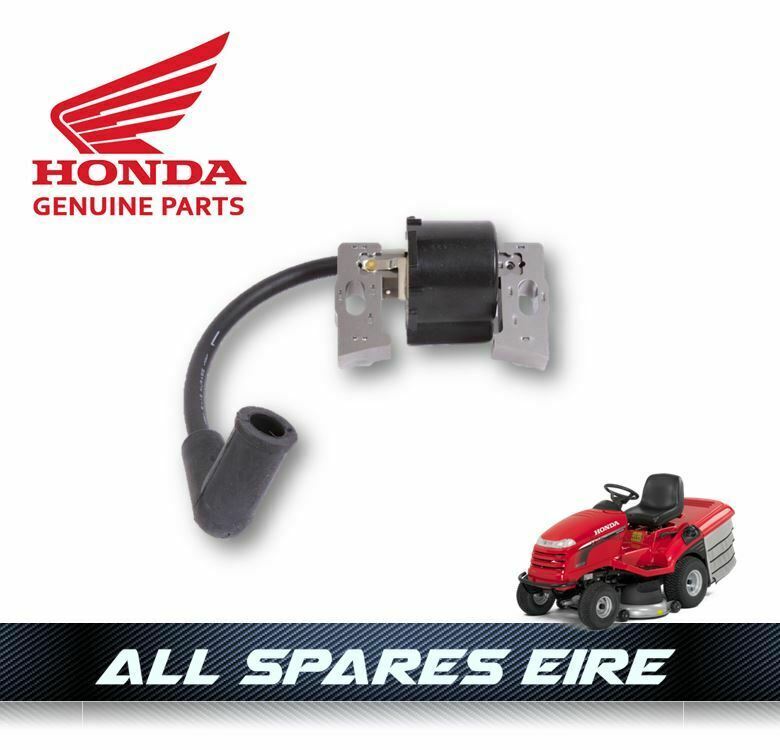

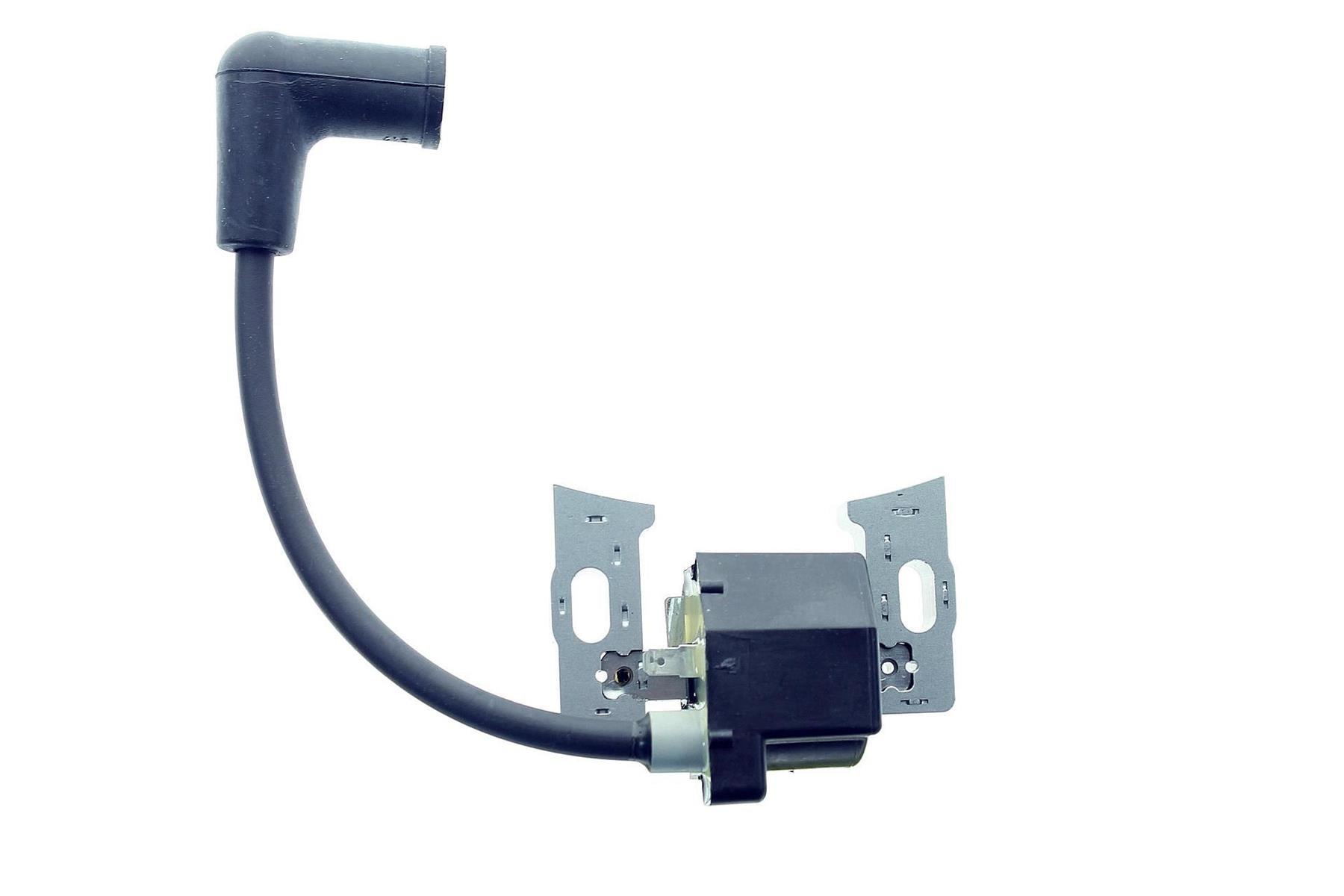

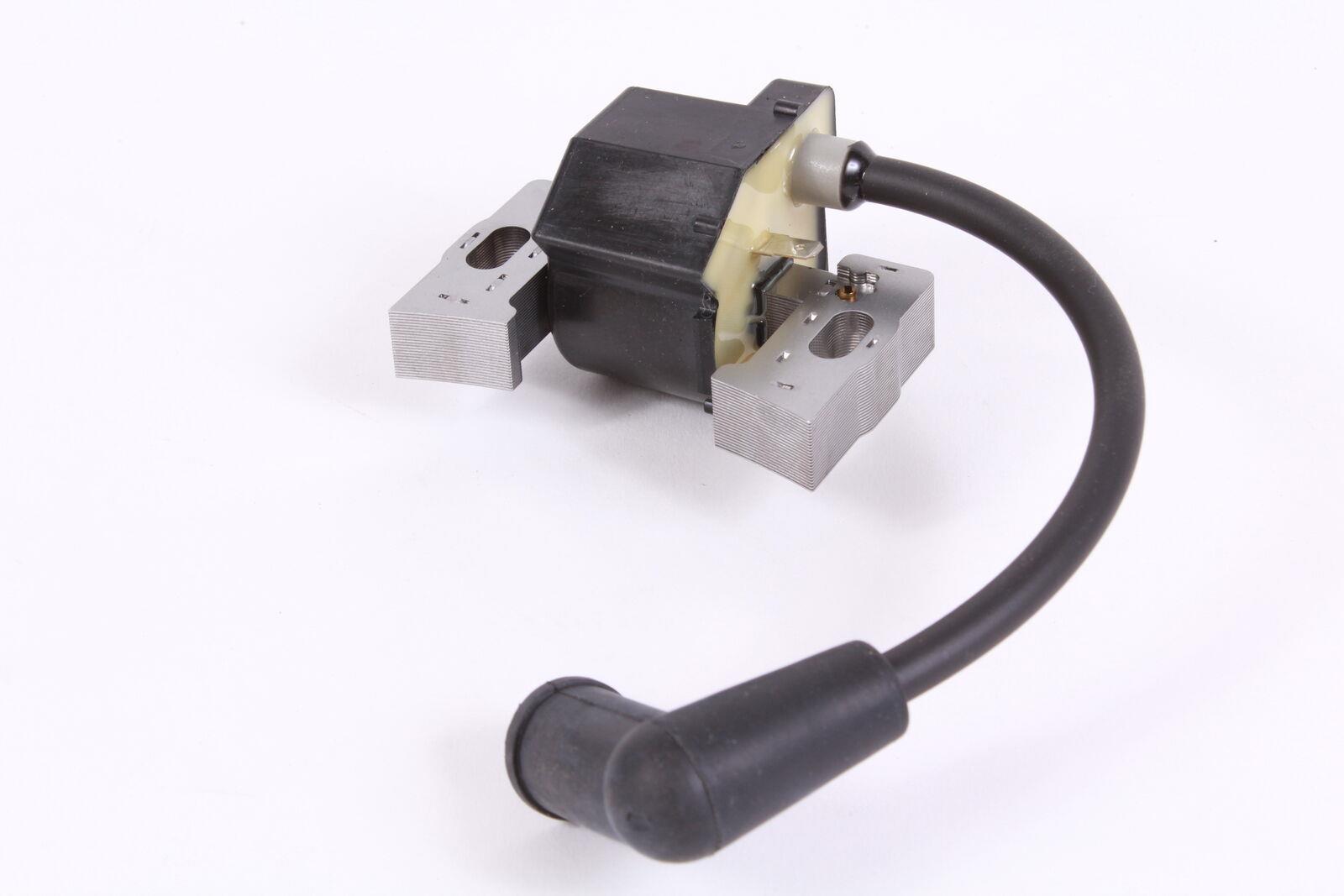

**Please check your part against pictures to ensure correct fitment**
Fits Specific Honda GCV530 & GXV530 Model Engines.
Please Note: Does not fit all specs of above models listed,
please make sure this fits by model, type and serial number of your engine or equipment...
All Known Replacement/Substituted Part Numbers: 30500-Z0A-013, 30500-Z0A-023
Vehicle Fitment
| MODEL | MODEL TYPE | FRAME PREFIX | FRAME RANGE | ENGINE | TYPE | PREFIX | ENGINE RANGE |
|---|---|---|---|---|---|---|---|
| HF2114 | HE | MAEF | 8100001-8199999 | GCV520 | CEE9 | GJAKM | 1000001-1999999 |
| HF2114K1 | HE | MAEF | 8200001-8299999 | GCV520 | CEE9 | GJAKM | 1000001-1999999 |
| HF2114K1 | SE | MAEF | 8200001-8299999 | GCV520 | CEE9 | GJAKM | 1000001-1999999 |
| HF2114K2 | HE | MAEF | 8300001-8399999 | GCV520 | CEE9 | GJAKM | 1000001-1999999 |
| HF2114K2 | SE | MAEF | 8300001-8399999 | GCV520 | CEE9 | GJAKM | 1000001-1999999 |
| HF2216 | HE | MAFF | 8100001-8199999 | GCV530 | CEE9 | GJAJM | 2000001-2999999 |
| HF2216 | SE | MAFF | 8100001-8199999 | GCV530 | CEE9 | GJAJM | 2000001-2999999 |
| HF2216K1 | HE | MAFF | 8200001-8999999 | GCV530 | CEE9 | GJAJM | 2000001-2999999 |
| HF2315 | HME | MAMF | 8400001-8899999 | GCV520 | RYB7 | GJAKM | 1000001-1049999 |
| HF2315 | HME/A | MAMF | 8400001-8899999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315 | SBE | MAMF | 8400001-8899999 | GCV520 | RYB7 | GJAKM | 1000001-1049999 |
| HF2315 | SBE/A | MAMF | 8400001-8899999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K1 | HME | MAMF | 8900001-8904282 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K1 | HME/A | MAMF | 2000001-2299999 | GCV520 | RYB | GJAKM | 1050001-9999999 |
| HF2315K1 | HMF | MAMF | 8900001-8904282 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K1 | HMF/A | MAMF | 2000001-2299999 | GCV520 | RYB | GJAKM | 1050001-9999999 |
| HF2315K1 | SBE | MAMF | 8900001-8904282 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K1 | SBE/A | MAMF | 2000001-2299999 | GCV520 | RYB | GJAKM | 1050001-9999999 |
| HF2315K1 | SBF | MAMF | 8900001-8904282 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K1 | SBF/A | MAMF | 2000001-2299999 | GCV520 | RYB | GJAKM | 1050001-9999999 |
| HF2315K2 | HME | MAMF | 2300001-2499999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K2 | HMF | MAMF | 2300001-2499999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K2 | SBE | MAMF | 2300001-2499999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K2 | SBF | MAMF | 2300001-2499999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K3 | HME | MAMF | 2500001-8399999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2315K3 | SBE | MAMF | 2500001-8399999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2317 | HME | MBVF | 1000001- | GCV520 | RYB7 | GJAJM | 1200001- |
| HF2415 | SBE | MANF | 8400001-8999999 | GCV520 | RYB7 | GJAKM | 1000001-1049999 |
| HF2415 | SBE/A | MANF | 8400001-8999999 | GCV520 | RYB7 | GJAKM | 1050001-9999999 |
| HF2417 | HME | MAPF | 8400001-8799999 | GCV530 | RYB7 | GJAJM | 1000001-1049999 |
| HF2417 | HME/A | MAPF | 8400001-8799999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417 | HTE | MAPF | 8400001-8799999 | GCV530 | RYB7 | GJAJM | 1000001-1049999 |
| HF2417 | HTE/A | MAPF | 8400001-8799999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K1 | HME | MAPF | 8800001-8899999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K1 | HTE | MAPF | 8800001-8899999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K2 | HME | MAPF | 8900001-8907045 | GCV530 | RYB | GJAJM | 1050001-9999999 |
| HF2417K2 | HME/A | MAPF | 2000001-2299999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K2 | HMF | MAPF | 8900001-8907045 | GCV530 | RYB | GJAJM | 1050001-9999999 |
| HF2417K2 | HMF/A | MAPF | 2000001-2299999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K2 | HTE | MAPF | 8900001-8907045 | GCV530 | RYB | GJAJM | 1050001-9999999 |
| HF2417K2 | HTE/A | MAPF | 2000001-2299999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K2 | HTF | MAPF | 8900001-8907045 | GCV530 | RYB | GJAJM | 1050001-9999999 |
| HF2417K2 | HTF/A | MAPF | 2000001-2299999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K3 | HBE | MAPF | 2300001-2499999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K3 | HBF | MAPF | 2300001-2499999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K3 | HME | MAPF | 2300001-2499999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K3 | HMF | MAPF | 2300001-2499999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K3 | HTE | MAPF | 2300001-2499999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K3 | HTF | MAPF | 2300001-2499999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K4 | HBE | MAPF | 2500001-2999999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K4 | HME | MAPF | 2500001-2999999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K4 | HTE | MAPF | 2500001-2999999 | GCV530 | RYB7 | GJAJM | 1050001-9999999 |
| HF2417K5 | HBE | MAPF | 3000001- | GCV530 | RYB7 | GJAJM | 1200001- |
| HF2417K5 | HME | MAPF | 3000001- | GCV530 | RYB7 | GJAJM | 1200001- |
| HF2417K5 | HTE | MAPF | 3000001- | GCV530 | RYB7 | GJAJM | 1200001- |
