Important: Does not include fuel tank or muffler

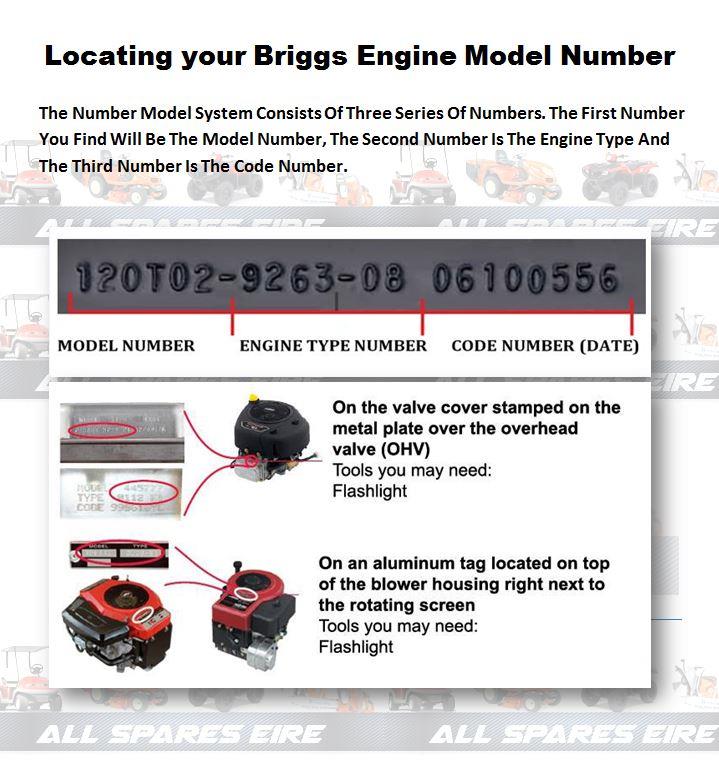

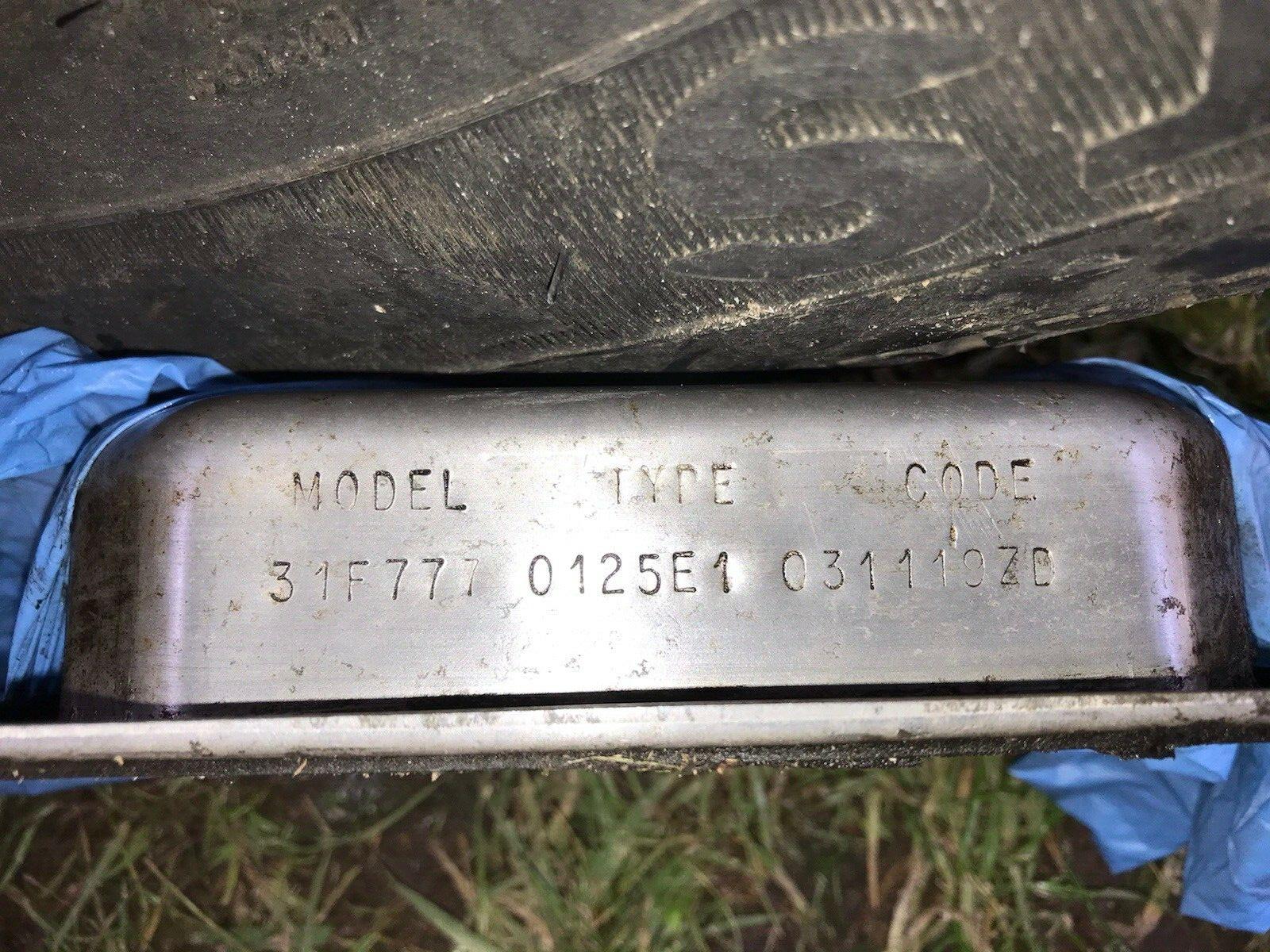

Please contact us with your Model Type and Code,
and we can check if this will be a straight replacement for your old engine.

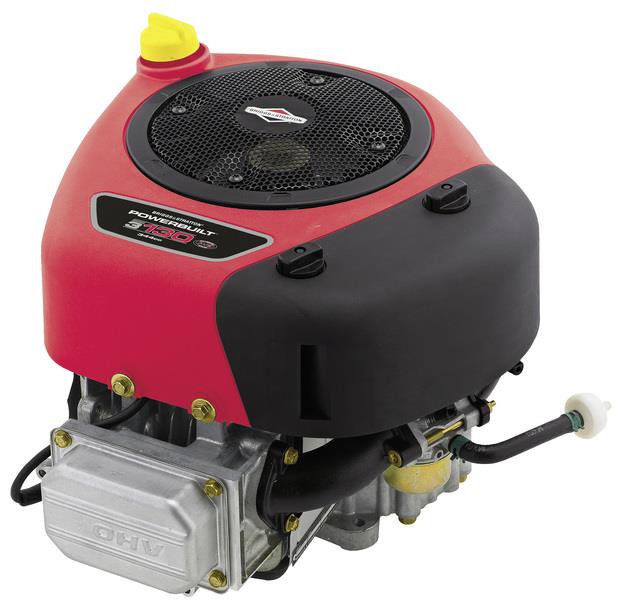

The INTEK™ 3 Series is a mid-range engine range that delivers consistent and reliable performance, resulting in superior performance and ensuring longevity.
Using overhead valve (OHV) technology, the AVS® anti-vibration system provides a long life and smooth running motor.
Properties:
AVS® - Vibration damping system Patented, linear vibration damping system eliminates the lateral movement of conventional systems.
Provides less vibration and more consistent operation.
Air filter with cartridge with foam prefilter (two-stage element) provides better protection against airborne solid particles entering the engine.
Cast liner provides additional durability and durability that resists wear and abuse while providing improved oil control.
OHV technology provides optimum performance that provides longer engine life and improved fuel efficiency.
Pressure-flow lubrication with oil filter provides a controlled flow of clean oil to the bearing surfaces and through the crankcase for less wear and longer engine life.
Magnetron® Electronic ignition system ensures maintenance-free easy starting.
Mechanical controller controls engine speed to provide more usable power in heavy duty applications.
Dipped lubrication ensures sufficient lubrication through the crankcase under normal operating conditions.
Float carburetor optimized fuel delivery for improved starting capability and superior performance.

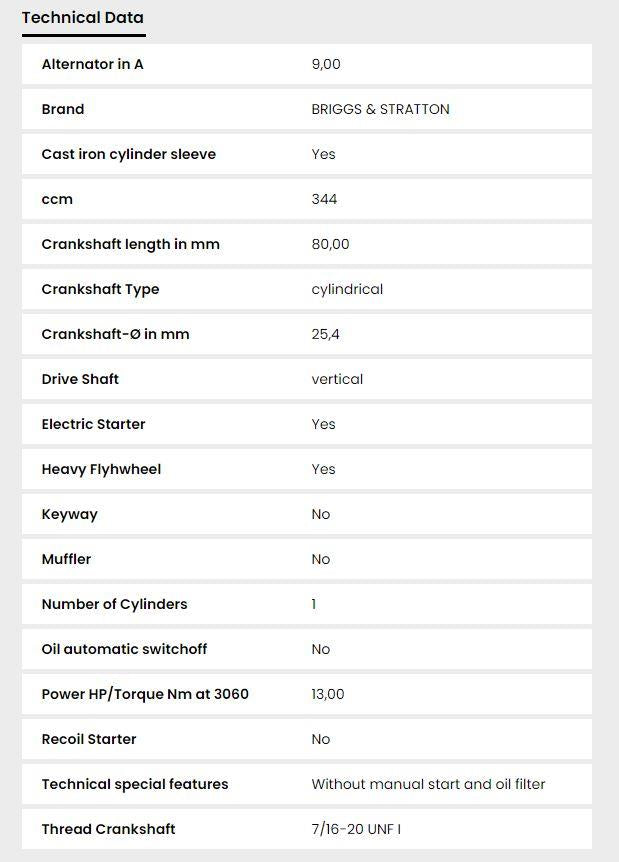

| TECHNICAL DATA |
|
| drive shaft |
vertical |
| Amount of cilinders |
1 |
| Automatic oil shut-off |
new |
| ccm |
344 |
| Thread crankshaft |
7/16-20 UNF I |
| Dynamo in A |
9.00 |
| Electric starter |
Yes |
| Molded liner |
Yes |
| muffler |
new |
| crankshaft type |
cylindrical |
| Crankshaft Ø in mm |
25.4 |
| Crankshaft length in mm |
80.00 |
| Brand |
BRIGGS & STRATTON |
| return starter |
new |
| Special technical features |
Without manual start and oil filter |
| keyway |
no |
| Power PS / torque Nm at 3060 |
13.00 |
| heavy flywheel |
Yes |
All Known Replacement/Substituted Part Numbers:
21R807-0062-B5, BS21R877 0005-B1
