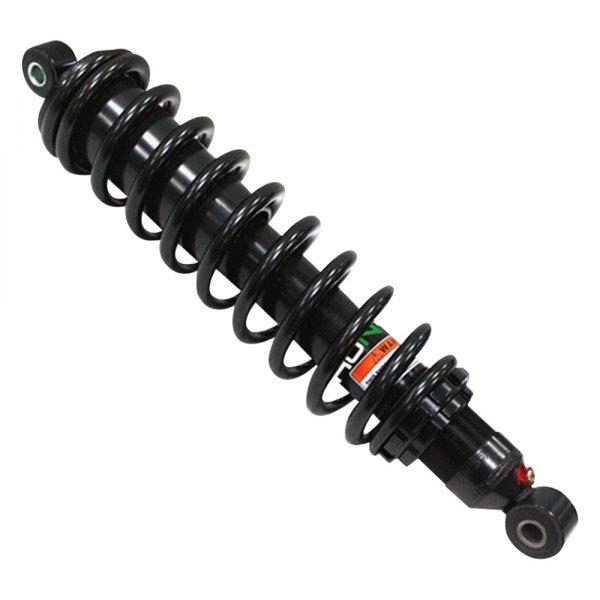

Shock Bronco Atv Front 344Mm, Au-04203

BRONCO HEAVY DUTY GAS SHOCKS AU-04203

Fits ATV Models:

Front -

• TRX350 TM/FE/TE/FM S/ES 2000-03
• TRX350 TM/FE/TE/FM RANCHER S/ES 4X4 2004-06

Rear -

• TRX300FW 4 X 4 1998-00

Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 20
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 24
• TUBE O.D MM: 38
• STROKE MM:68
• SPRING OD MM: 73
• SPRING WIRE DIAMETER MM: 9.5
• SPRING RATE LBS/INCH: 202
• SPRING RATE KG/MM: 3.60
• CENTER TO CENTER MM: 345
• CENTER TO CENTER IN: 13 4/7

OEM Cross-reference Numbers Only: 51400-HN5-671, 51400-HN5-990, 51400-HN4-671, 51400-HN4-990, 51400-HN4-M01, 51400-HN5-671, 51400-HN5-990, 51400-HN4-671, 51400-HN4-990, 51400-HN4-M01, 51400-HN4-M60, 51400-HN5-M41, 51400-HN5-N00
