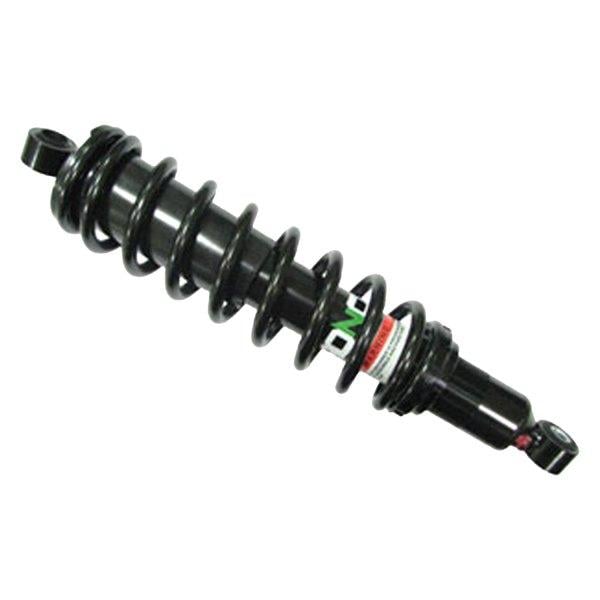

Shock Bronco Atv Rear Trx400, Au-04252

Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

FITMENT

• 1995 TRX400FW A REAR SHOCK ABSORBER
• 1995 TRX400FW AN REAR SHOCK ABSORBER
• 1996 TRX400FW A REAR SHOCK ABSORBER
• 1996 TRX400FW AN REAR SHOCK ABSORBER
• 1997 TRX400FW A REAR SHOCK ABSORBER
• 1997 TRX400FW AN REAR SHOCK ABSORBER
• 1998 TRX400FW A REAR SHOCK ABSORBER
• 1998 TRX400FW AC REAR SHOCK ABSORBER
• 1999 TRX400FW A REAR SHOCK ABSORBER

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 16
• TOP EYELET WIDTH MM: 20
• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 21
• TUBE O.D MM: 38
• STROKE MM: 65
• SPRING OD MM: 72
• SPRING WIRE DIAMETER MM: 8.5
• SPRING RATE LBS/INCH: 221
• SPRING RATE KG/MM: 3.95
• CENTER TO CENTER MM: 347
• CENTER TO CENTER IN: 13 2/3

Part No. 29-533 (Off Road Only Ltd)
BRONCO REF; AU-04252
OEM REF; 52400-HM7-003
WILL FIT THE FOLLOWING;
TRX400FW FOREMAN 1995-03
