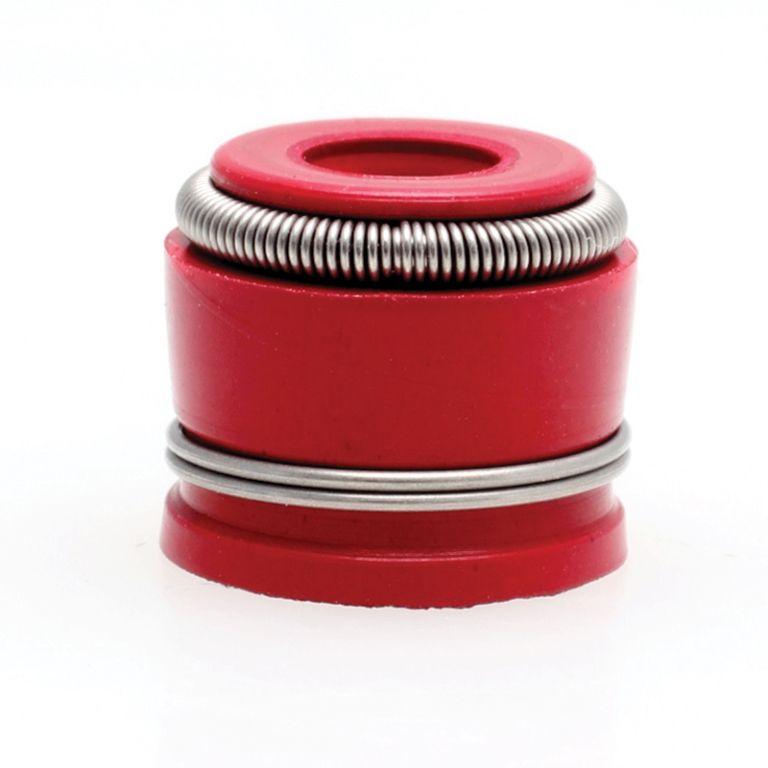

Seal, Red Viton, 5.5mm Stem x 0.360 Guide Seal Detail,
Various Applications
Seal Valve Stem, Universal, 5.5mm Stem x Guide Dia 8.65mm,
8.65mm Length, Seal OD.11.20mm
KIBBLEWHITE 71016-16
HONDA
XR75/80 1985-03,
XR100 1985-03,
XL200R 1980-02,
XR200R 1980-02 *Excluding XR200R 1984-85 4V,
XR/XL250 RFVC 1984-95,
XR250L 1991-96,
XR 250R 1996-04,
XR 400 RFVC 1996-04,
CRF450R 2002-08 (Intake Only),
Honda® VARIOUS 750cc-1100cc 1979-'83
Suzuki® GS™ 750 E/ ES/ L/ T 1980-1986
Suzuki® GSX-R™ 1000 2009-2016
Suzuki® GS™ 1100 E / ES / S 1980-1986
Suzuki® GS™ 1150 1984-1986
Yamaha® FJ™ 1100/ 1200 1984-1993
Yamaha® V-MAX™ 1985-2007
KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.
| Type | Intake / Exhaust |
| Material | Red Viton® |
| Reference | See Figure 1 |
| Quantity | Pkg. of 16 (Seal Style 4) |
| Stem Diameter | 5.5mm |
| Overall Length | 0.320 |
| Seal O.D. | 0.440 |
| A | 0.358”±0.005” |
| B | 0.320 |
| C | 0.110 |
| D | 0.200 |
| OEM REF. P/N | 12209-422-005 |
| Note | Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit |
